Power modules, amplifiers and connectors
Six product families — 37 series and 121 catalogued part numbers, from 3 W isolated bricks to 2080 W high-voltage converters and 0.5 mm-pitch connectors.
Standard Power Modules
Isolated DC/DC and AC/DC brick modules from 3 W to 2080 W — metal-shelled, epoxy-potted, fully localised.

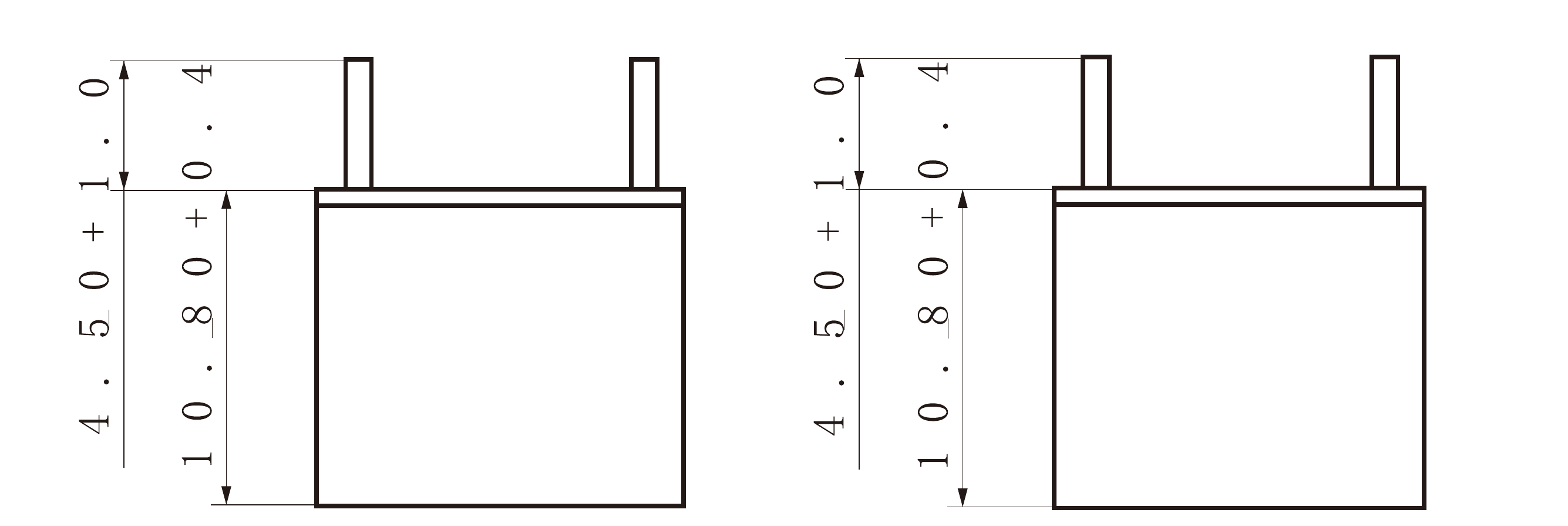

100% localisedERM Series
A 100 % domestic-substitute isolated DC/DC converter in a metal shell with epoxy potting, offered in three input bands and single or dual outputs.
- Input
- 4.5–9 / 9–40 / 16–40 VDC
- Output power
- 3 W · 5 W
- Efficiency
- 76–85 %
- Package
- 12.7 × 12.7 × 10.8 mm

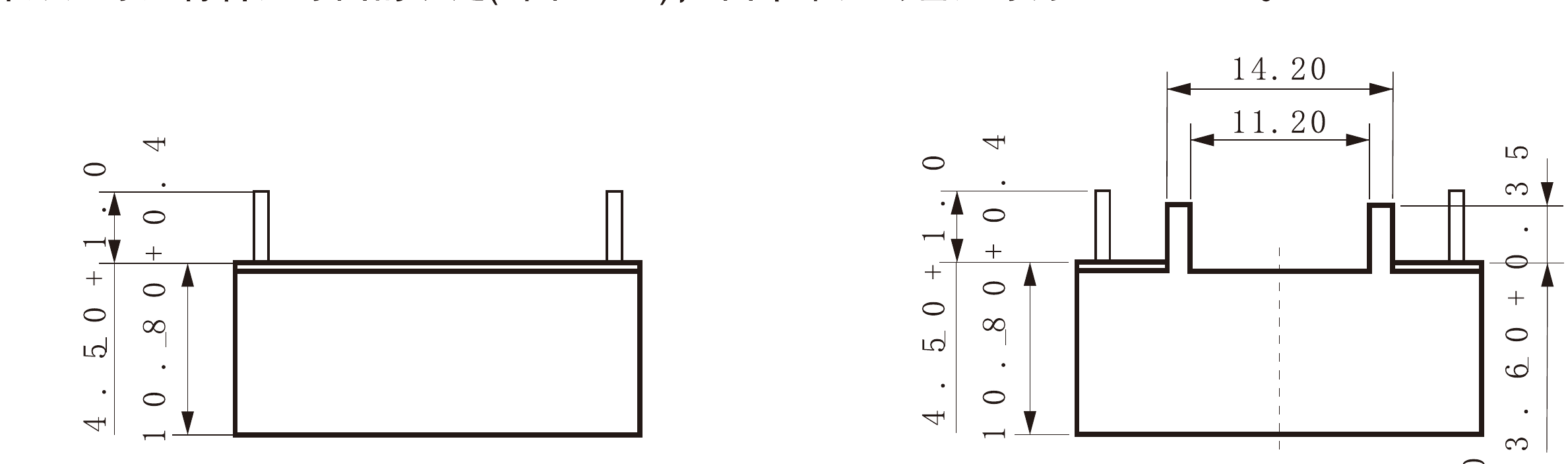

Fully localisedERK Series
A fully localised 10 W / 15 W isolated DC/DC converter family covering 18, 28 and 48 V input bands in a 25.4 mm metal brick.
- Input
- 9–40 / 16–40 / 16–75 VDC
- Output power
- 10 W · 15 W
- Efficiency
- 82–85 %
- Package
- 25.4 × 12.7 × 10.8 mm

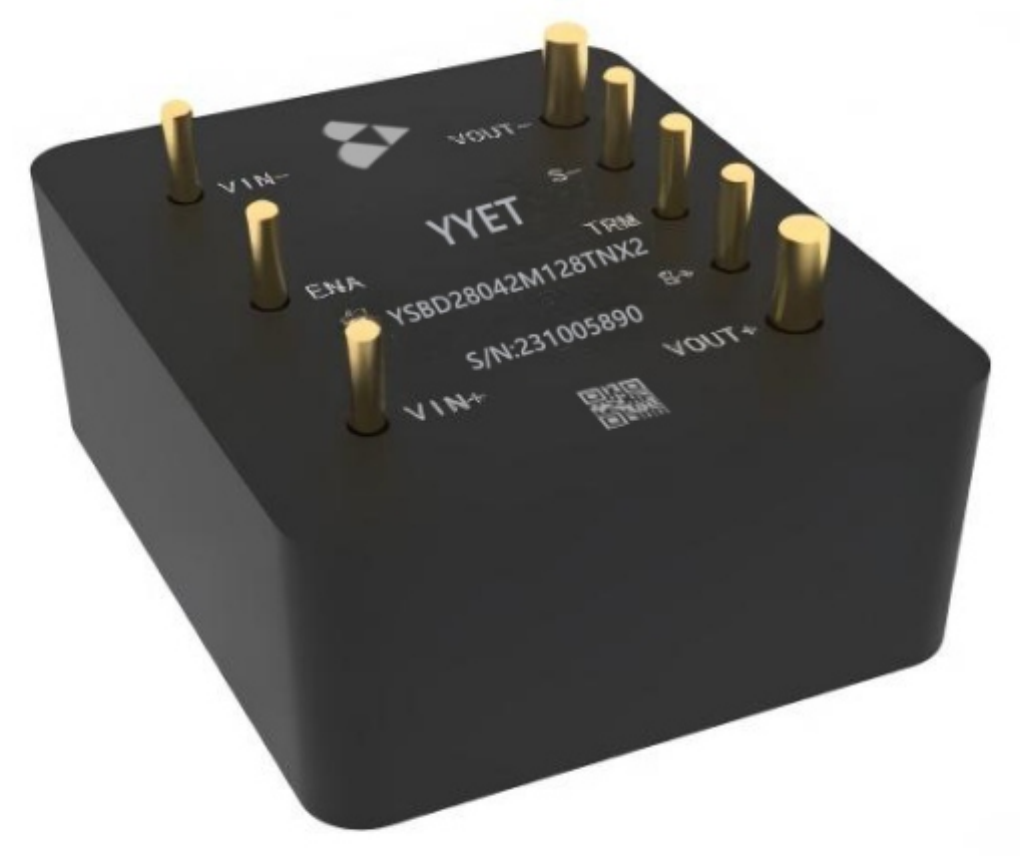

1/32 brick1/32 Brick 40 W
A 40 W 1/32-brick DC/DC module in a fully-encapsulated metal case with straight output pins — high reliability, high efficiency, high power density and low ripple in a standard 1/32-brick footprint.
- Input
- 16–40 Vdc
- Output power
- 40–42 W
- Efficiency
- 87 % @28 Vdc
- Isolation
- 1500 Vdc
1/16 brick1/16 Brick 150 W
A 150 W 1/16-brick DC/DC module in an encapsulated metal case with straight output pins, holding 90 % efficiency across the industrial temperature range.
- Input
- 16–40 Vdc
- Output power
- 150 W
- Efficiency
- 90 % @28 Vdc
- Isolation
- 2250 Vdc

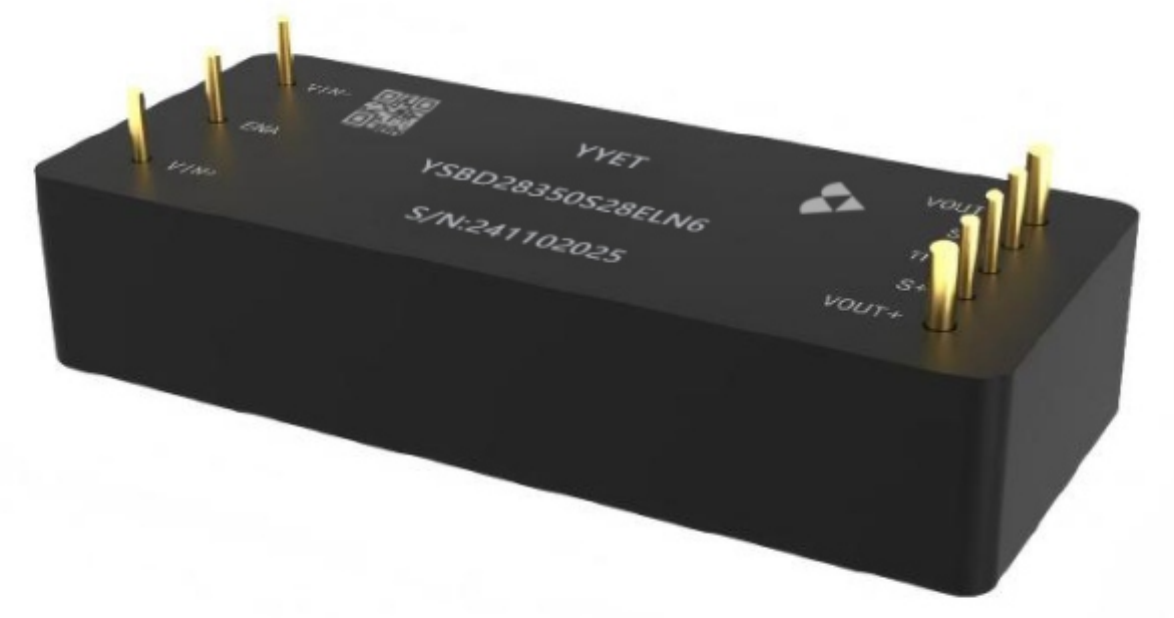

1/8 brick1/8 Brick 350 W
A 350 W high-power-density 1/8-brick module, encapsulated in metal with straight pins, delivering 92 % efficiency with low ripple and noise.
- Input
- 16–40 Vdc
- Output power
- 350 W
- Efficiency
- 92 % @28 Vdc
- Isolation
- 2250 Vdc

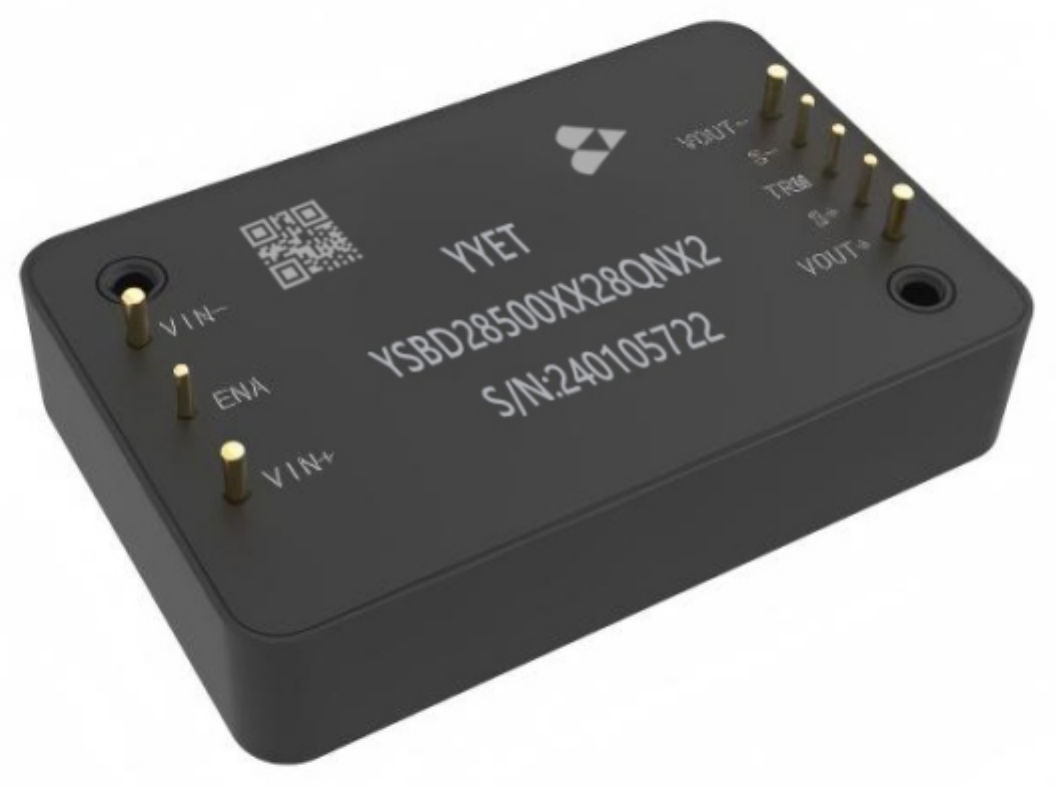

1/4 brick1/4 Brick 500 W
A 500 W 1/4-brick DC/DC module with high reliability, high efficiency and high power density in a metal-encapsulated case.
- Input
- 16–40 Vdc
- Output power
- 500 W
- Efficiency
- 92–93 %
- Isolation
- 2250 Vdc

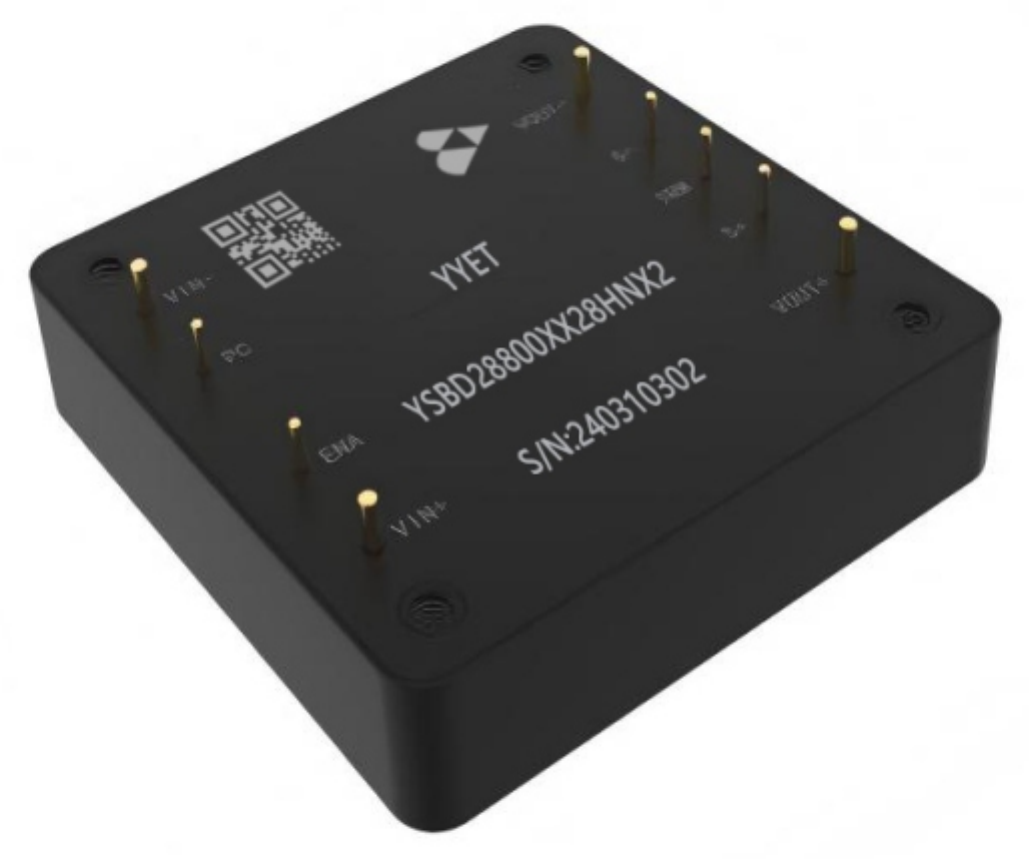

1/2 brick1/2 Brick 800 W
The 800 W 1/2-brick module — the highest-power low-voltage brick in the range, reaching 94 % efficiency at 28 Vdc.
- Input
- 16–40 Vdc
- Output power
- 800 W
- Efficiency
- 94 % @28 Vdc
- Isolation
- 2250 Vdc

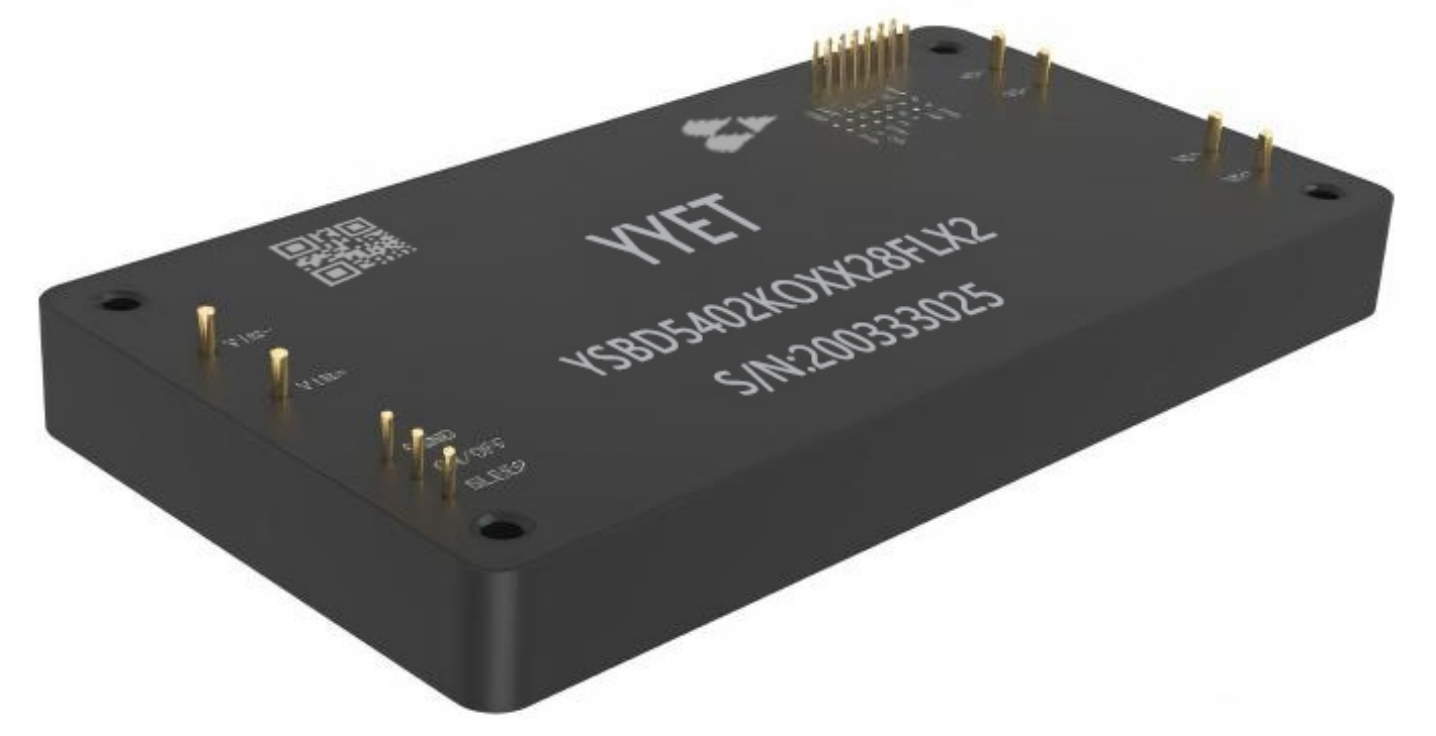

2080 WFull Brick 540 V
A full-brick high-power-density high-voltage DC/DC converter accepting a 400–800 Vdc bus and delivering 2080 W at 95.5 % efficiency.
- Input
- 400–800 Vdc
- Output power
- 2080 W
- Efficiency
- 95.5 %
- Isolation
- 3000 Vdc

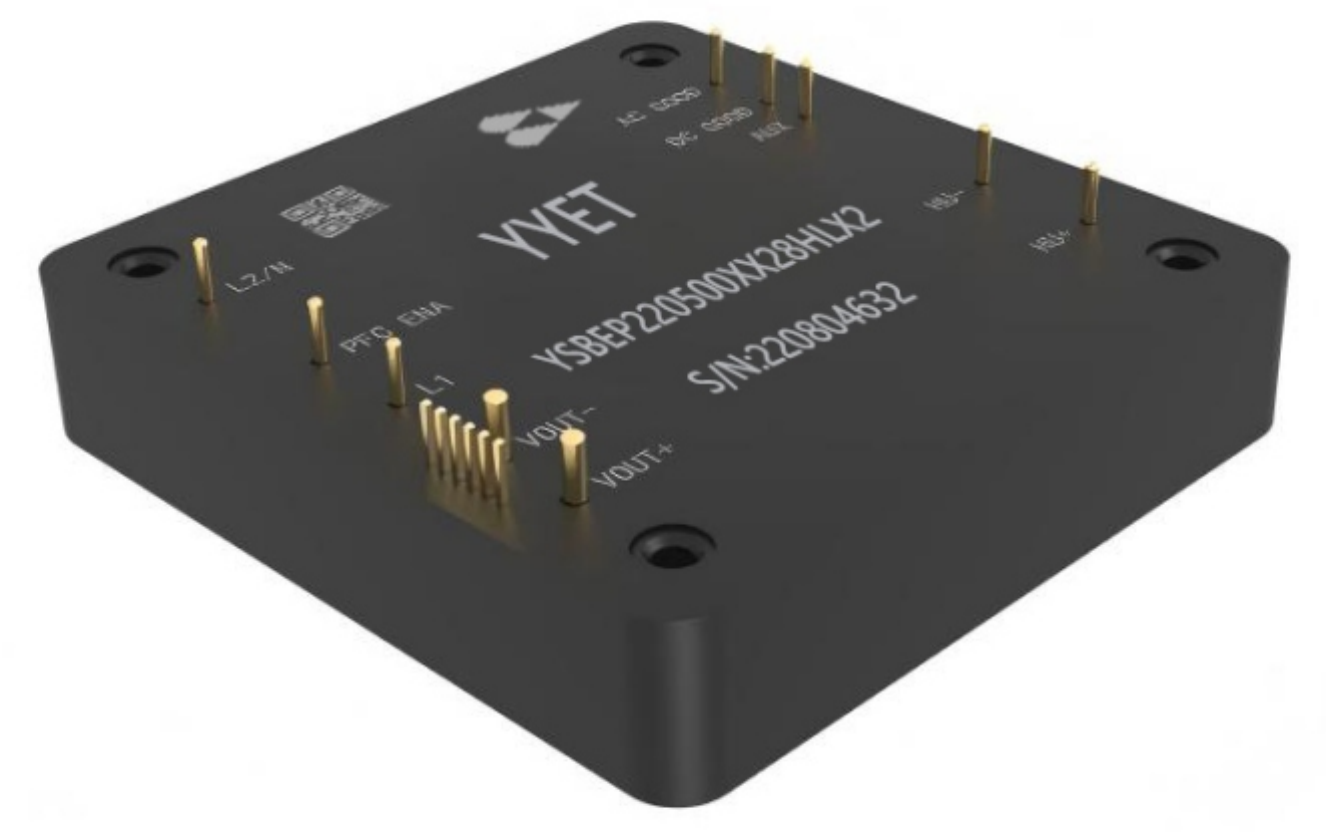

PFC 93 %1/2 Brick AC/DC 500 W
A single-phase 500 W AC/DC module with active power-factor correction reaching 93 % efficiency, encapsulated in a five-sided metal case with epoxy potting.
- Input
- 85–264 Vac
- Output
- 28 V / 500 W
- Efficiency
- 93 %
- Isolation
- 3000 Vac
Microchip Power Supplies
Chip-scale high-power-density converters to SJ 20668, up to 10 400 W/in³ in FULL-CHIP and HALF-CHIP packages.

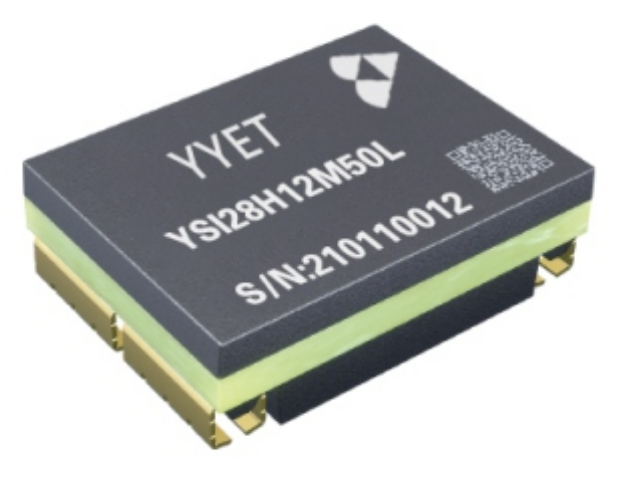

334 W/in³YSPI28H Series
A wide-input microchip power supply in an ultra-small HALF-CHIP package — 7.6 g and 334 W/in³ with 2250 Vdc isolation.
- Input
- 18–50 V
- Output power
- 15–25 W
- Efficiency
- 83–87 %
- Package
- HALF-CHIP 16.5 × 21.0 × 6.73 mm

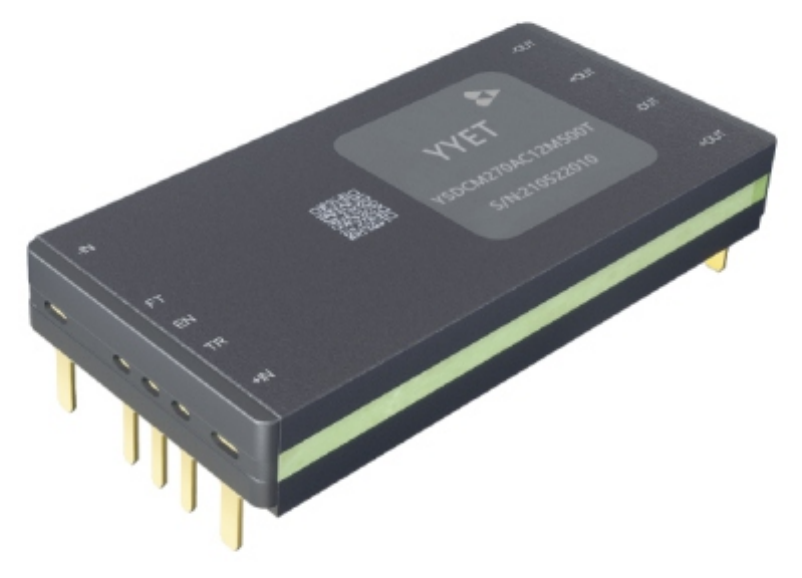

10 400 W/in³YSDCM270AC Series
The highest power-density part in the range — a 160–420 V wide-input microchip converter at 10 400 W/in³ and 17.4 kW/kg in a CHIP5623 package.
- Input
- 160–420 V
- Output power
- 150–500 W
- Efficiency
- 87–93 %
- Isolation
- 4242 Vdc

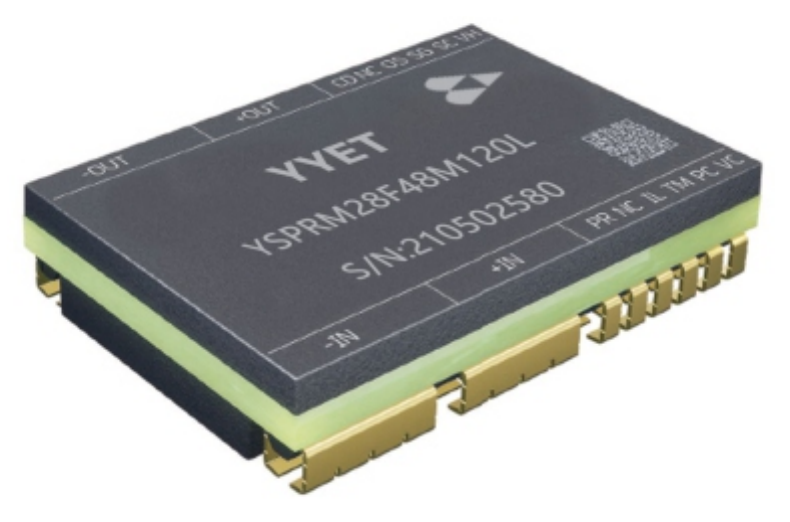

1702 W/in³YSPRM28F Series
A wide-input 28 V FULL-CHIP module up to 300 W, using a VJTN low-profile split-mount structure at only 16 g.
- Input
- 18–50 / 20–54 V
- Output power
- 120–300 W
- Efficiency
- 93–95.5 %
- Package
- FULL-CHIP 32.5 × 22.0 × 6.73 mm

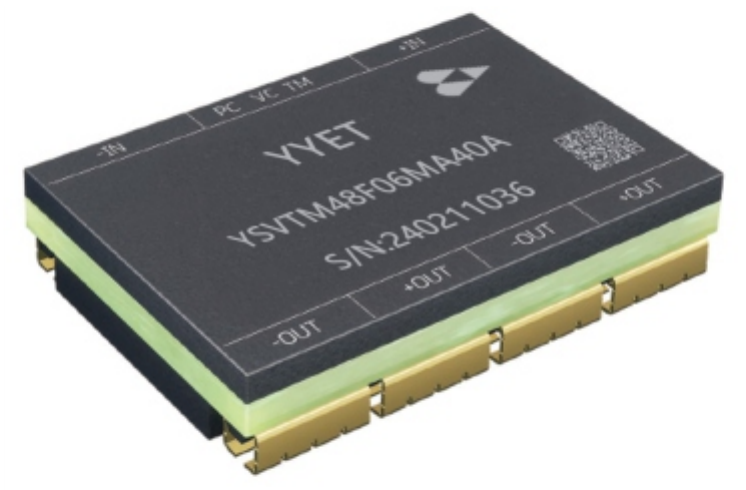

96.2 % peakYSVTM48F Series
A fixed-voltage-ratio bus converter family — seven transformation ratios from 1:1 to 8:1, up to 320 W, peaking at 96.2 % efficiency.
- Input
- 26–55 V
- Output power
- 120–320 W
- Ratios
- 1:1 · 2:1 · 3:1 · 4:1 · 5:1 · 8:1
- Efficiency
- 94–96.2 %

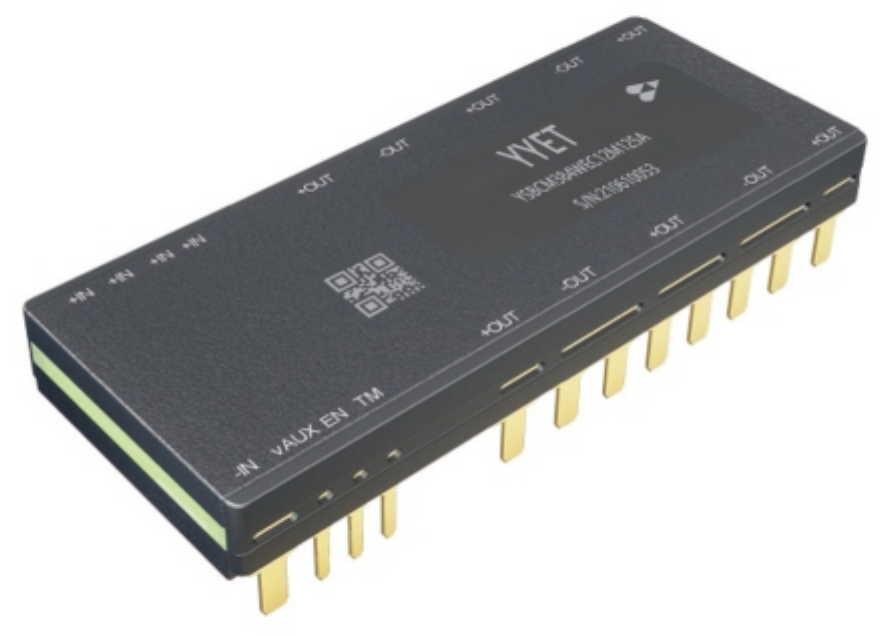

1500 WYSBCM384WEC Series
A 1500 W high-voltage wide-input fixed-ratio bus converter reaching 96.4 % efficiency at 2352 W/in³ and only 41 g.
- Input
- 260–410 V
- Output
- 12 V / 18 V, 66–125 A
- Output power
- 1500 W
- Efficiency
- 96.4 %
160–420 V inYSDCM270AFL Series
A metal-shelled variant of the 270 series for conducted-cooling installations, 15 W to 500 W with 4242 Vdc isolation.
- Input
- 160–420 V
- Output power
- 15–500 W
- Efficiency
- 87.7–93.2 %
- Isolation
- 4242 Vdc

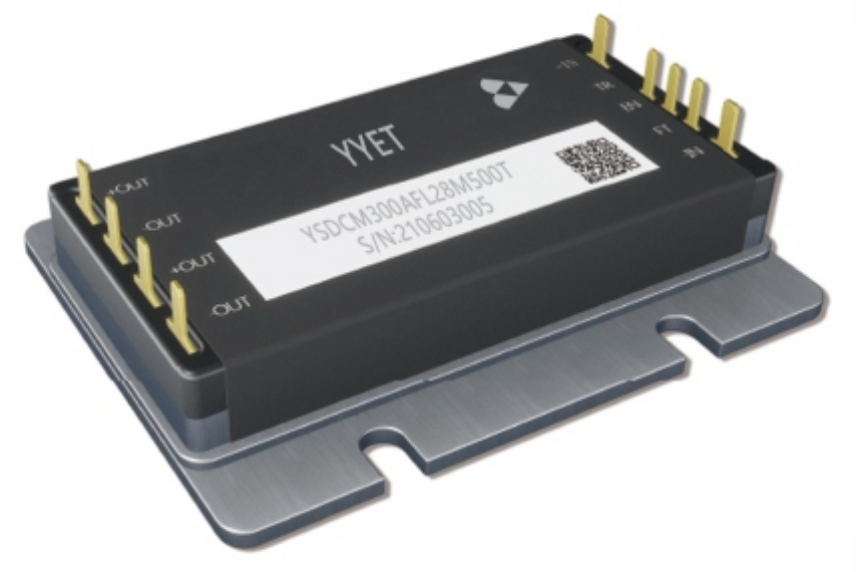

200–420 V inYSDCM300AFL Series
A 200–420 V metal-shelled microchip converter for conducted cooling, 15 W to 500 W at 612 W/in³.
- Input
- 200–420 V
- Output power
- 15–500 W
- Efficiency
- 87.7–93.2 %
- Isolation
- 4242 Vdc
Embedded Power Modules
Board-mount AC-DC and DC-DC bricks, PSIP chip-level regulators and server/communication power to 1200 W.

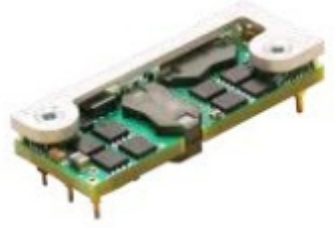

500–550 WBrick AC-DC Modules
Wide-range single-phase AC-DC bricks delivering a 12 V DC rail at up to 550 W, for embedded and general-purpose equipment.
- Input
- 90–305 V AC
- Output
- 12 V DC
- Output power
- 500–550 W
- Efficiency
- 91–94 %
187–1200 WBrick DC-DC Modules
A twelve-part board-mount DC-DC brick family from 187 W to 1200 W, in open-frame and baseplate constructions with efficiencies to 96.5 %.
- Input
- 18–75 V DC
- Output
- 3.8–48.84 V DC
- Output power
- 187–1200 W
- Efficiency
- 94–96.5 %

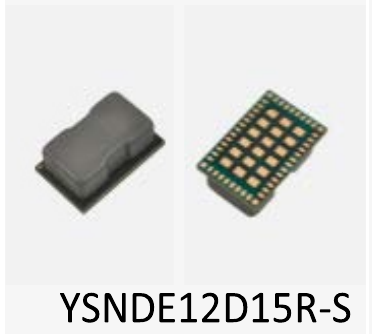

2–60 APSIP Chip-level Power
Point-of-load PSIP regulators from 2 A to 60 A in packages as small as 3.0 × 2.8 × 1.6 mm, including multi-output and AVS variants.
- Input
- 2.4–16 V DC
- Output
- 0.5–5.7 V DC
- Output current
- 2–60 A
- Efficiency
- 82–96.5 %

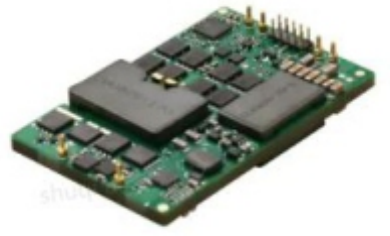

800–1100 WServer & Communication Power
Baseplate and open-frame DC-DC modules for server and communication racks, 800 W to 1100 W from a 34–72 V DC bus at up to 96 % efficiency.
- Input
- 34–72 V DC
- Output
- 5–36 V DC
- Output power
- 800–1100 W
- Efficiency
- 92–96 %
VPX Power
Custom localised power assemblies in 3U VPX form, compatible with VITA 46/48/65.

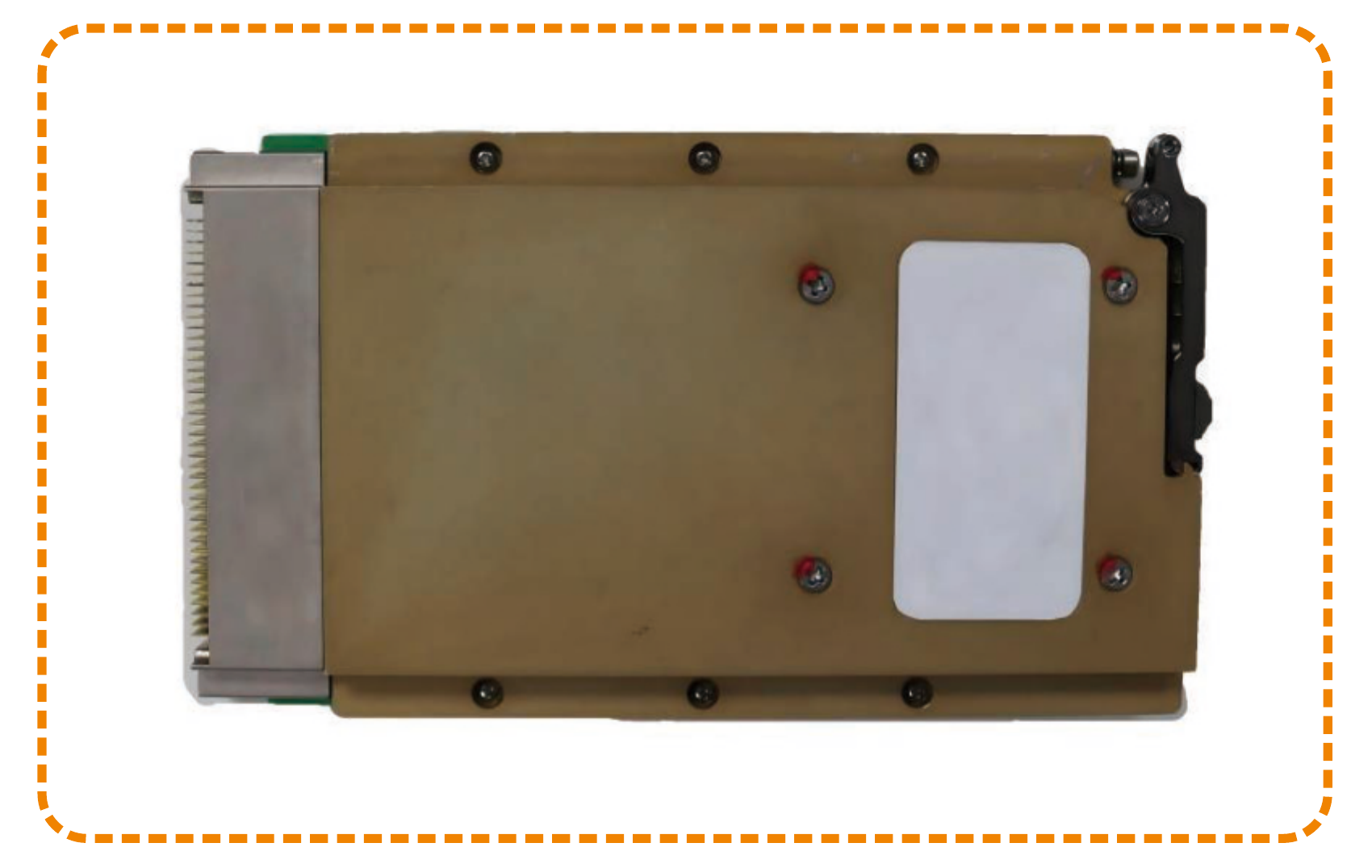

550 W, 3UVPX Power Supply
A highly modular, high-reliability 550 W multi-output power supply in a standard 3U six-slot structure, compatible with VITA 46/48/65 and built for signal-processing chassis.
- Input
- 28 Vdc ±20 %
- Outputs
- 12 V/55 A · 28 V/5 A · 24 V/0.8 A
- Total power
- 550 W
- Form factor
- 3U, 6-slot

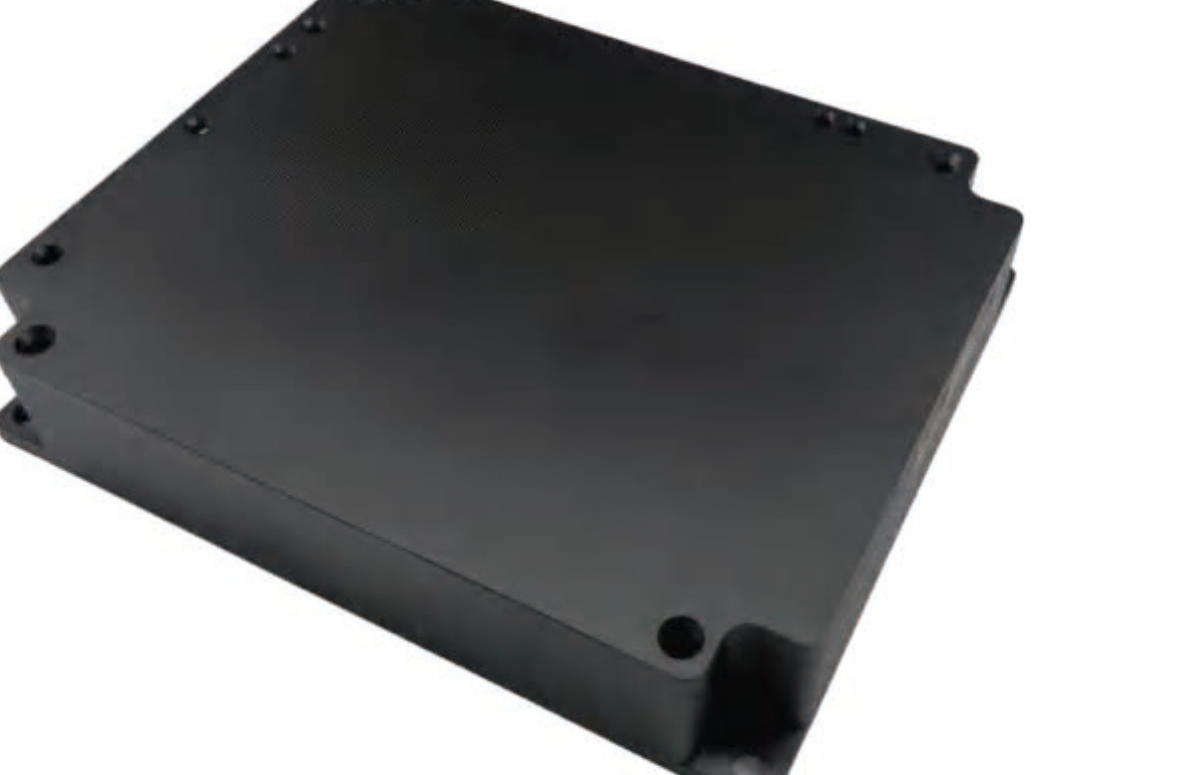

Made to orderCustom Localised Power Assemblies
Power assemblies built to customer requirements for industrial systems, vehicles and communications equipment — wide-input bricks, EMI filters, magnetically-sealed transformers, potted capacitors, DC/DC modules and drive input/output filters, integrated into one metal-housed unit.
- Build
- PCB-mount or flange-mount
- Housing
- Metal enclosure, laser marked
- Interface
- VPX connector (VITA 62)
- EMC
- GJB151A · CE102 · CS101/114/115/116
Operational Amplifiers
Precision instrumentation amplifiers and differential ADC drivers, pin- and spec-compatible with international parts.

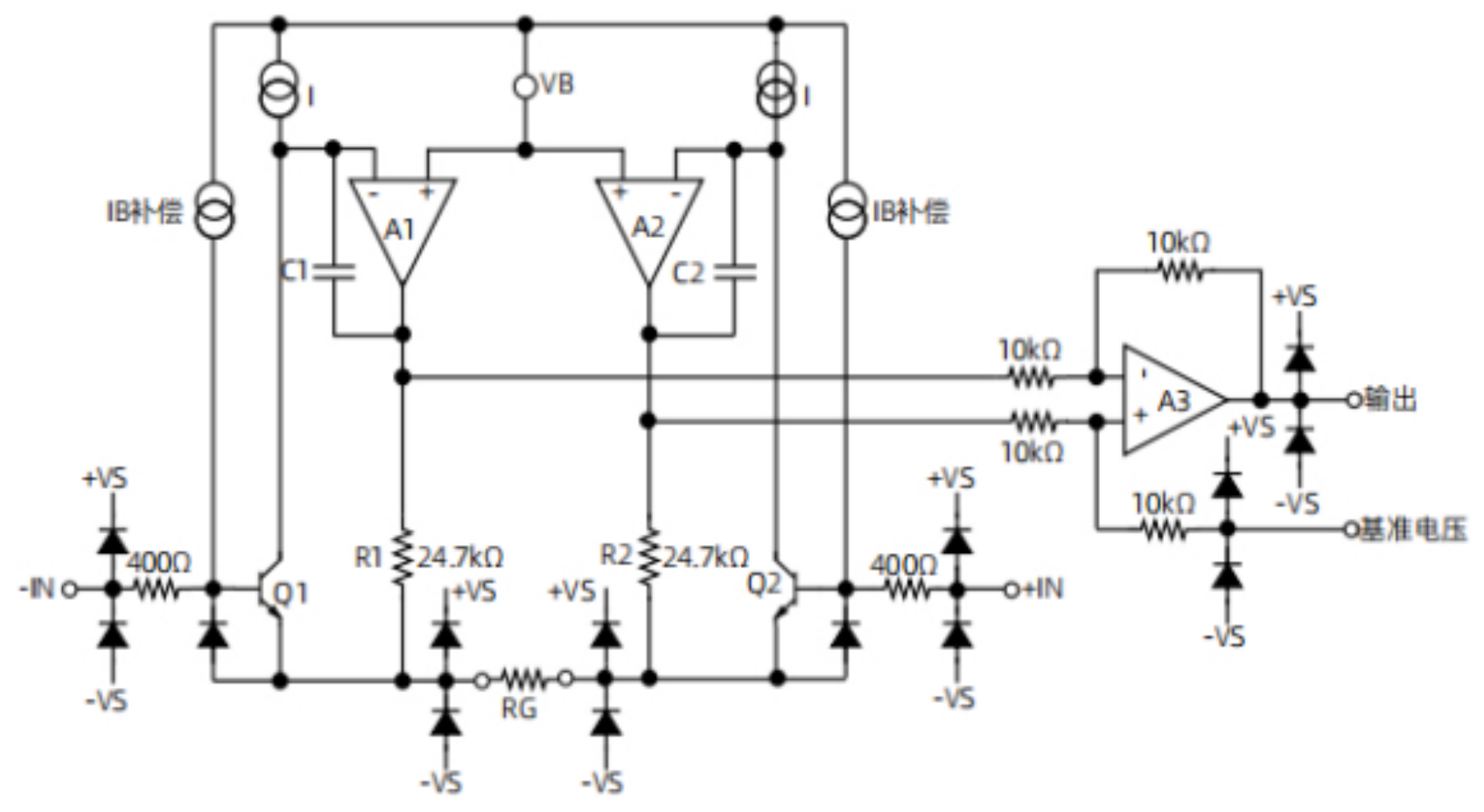

AD620 equivalentYS620
A high-performance instrumentation amplifier whose gain is programmed by a single external resistor, offering low offset, low drift and low noise for precision signal acquisition.
- Supply
- ±2.3 V to ±18 V
- Input offset
- ≤ 50 µV
- Offset drift
- ≤ 1 µV/°C
- Noise
- 9 nV/√Hz

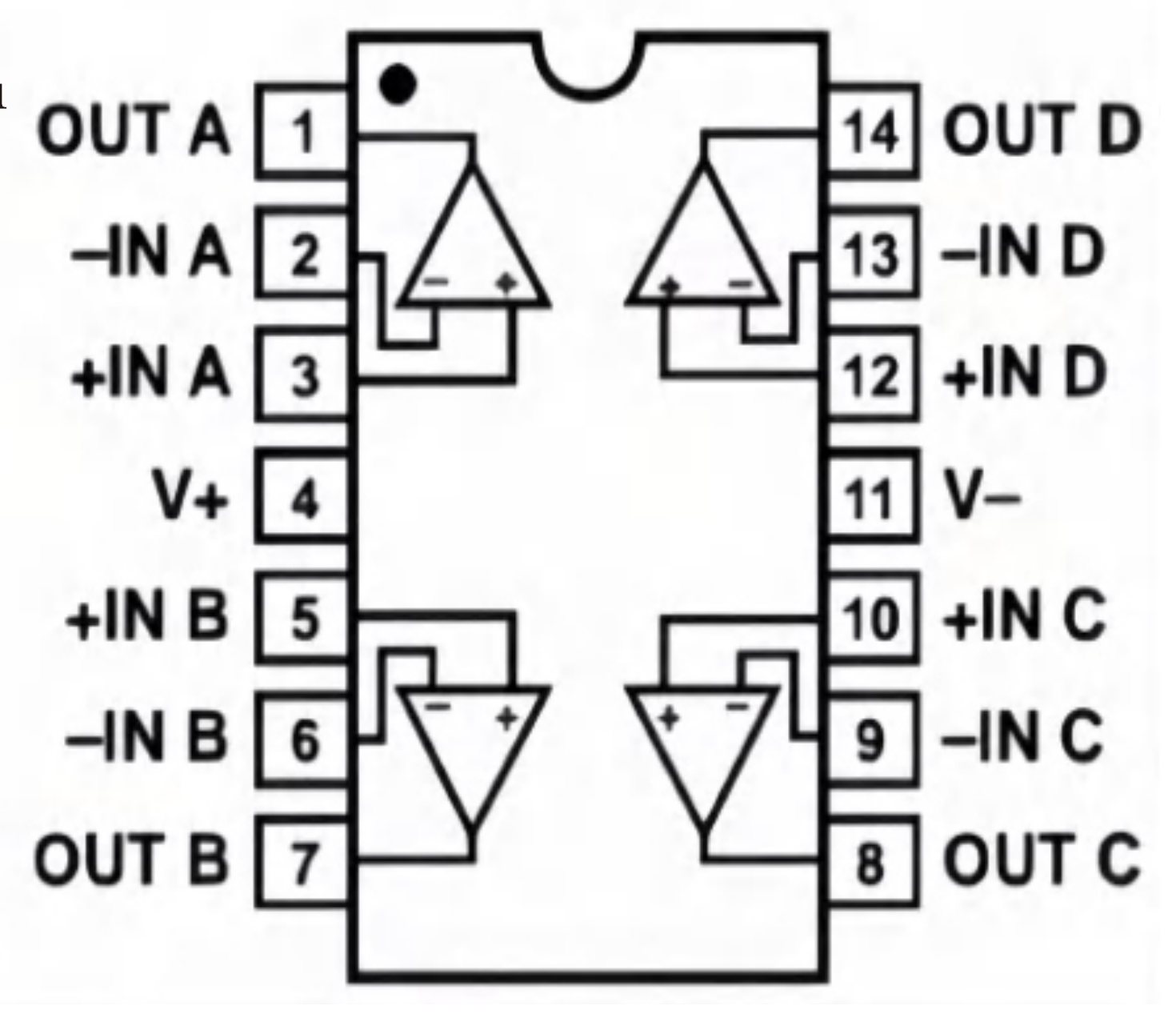

OP400 equivalentYS400
A precision quad operational amplifier with very low offset voltage and drift at under 725 µA per amplifier, for multi-channel precision acquisition and processing.
- Input offset
- ≤ 150 µV
- Offset drift
- ≤ 1.2 µV/°C
- Supply current
- ≤ 725 µA/amp
- Open-loop gain
- > 3000 V/mV

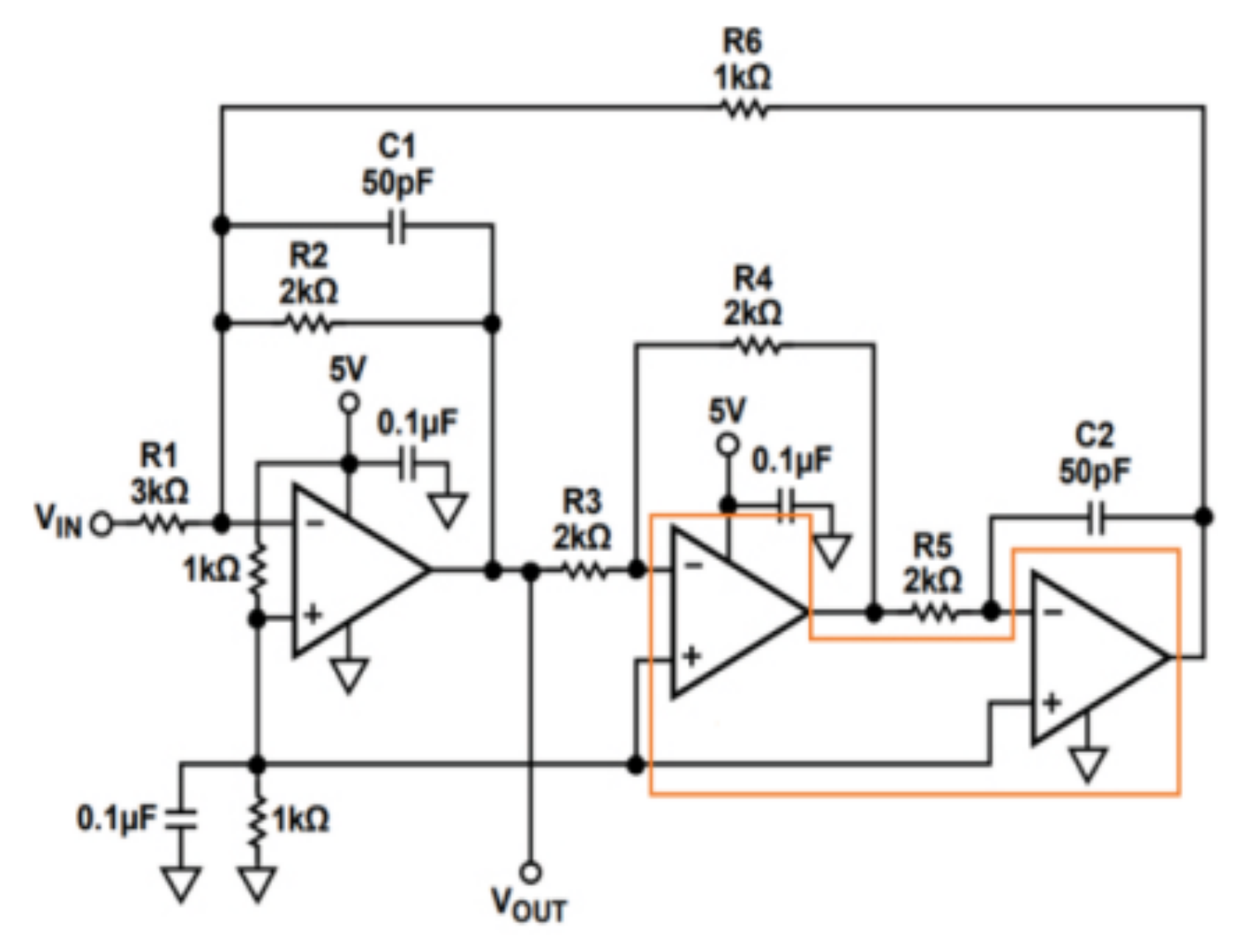

AD8032 equivalentYS8032
A low-power rail-to-rail input and output amplifier at 800 µA per channel with 80 MHz bandwidth — suited to buffering low-voltage ADCs.
- Supply current
- 800 µA/amp
- Supply
- ±2.7 V…±5 V or +5 V
- Bandwidth
- 80 MHz
- Slew rate
- 22 V/µs

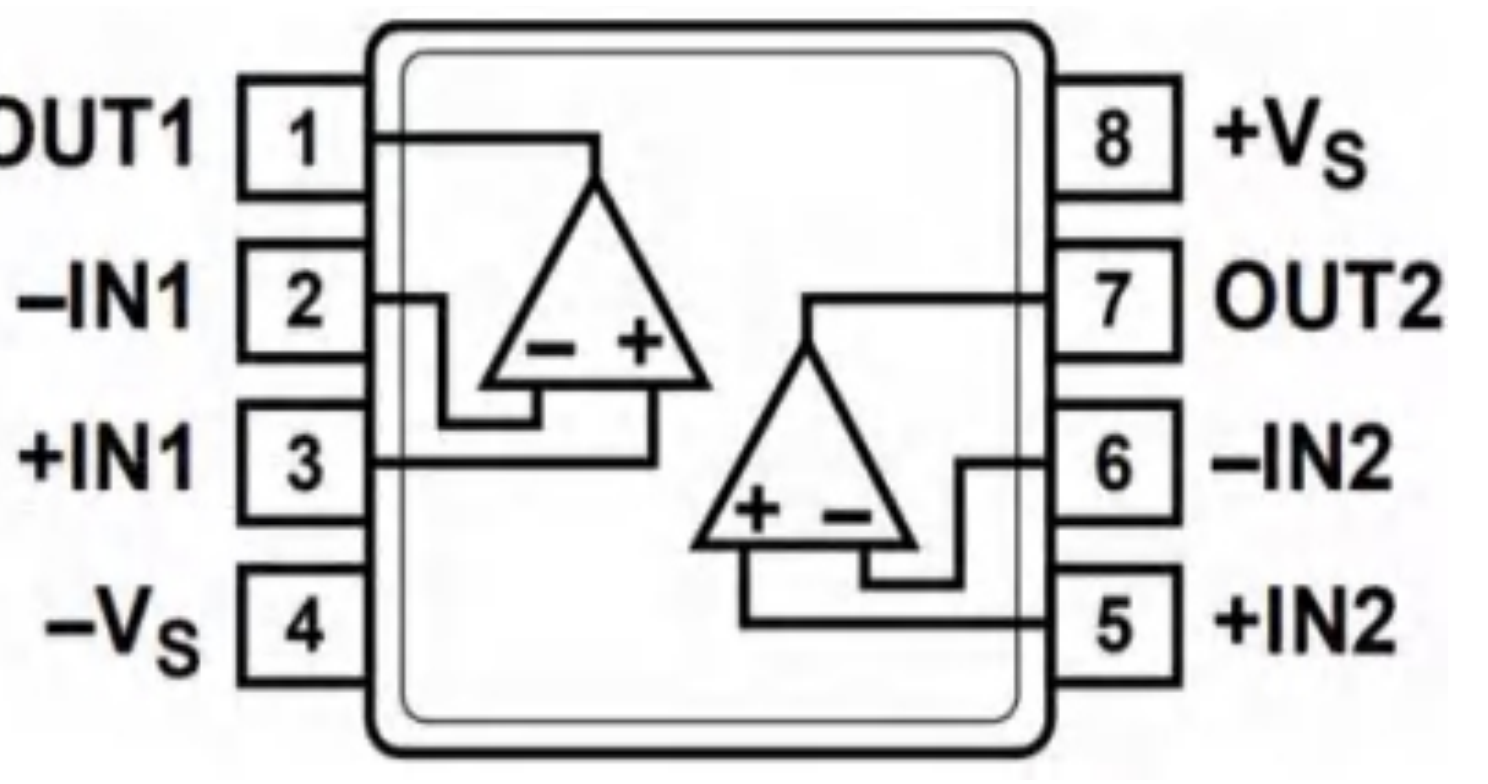

AD8042 equivalentYS8042
A dual-channel high-bandwidth rail-to-rail ADC driver with 120 MHz bandwidth and 130 V/µs slew rate for fast data-acquisition front ends.
- Channels
- Dual
- Supply
- ±3 V…±5 V
- Bandwidth
- 120 MHz (G = −1)
- Slew rate
- 130 V/µs

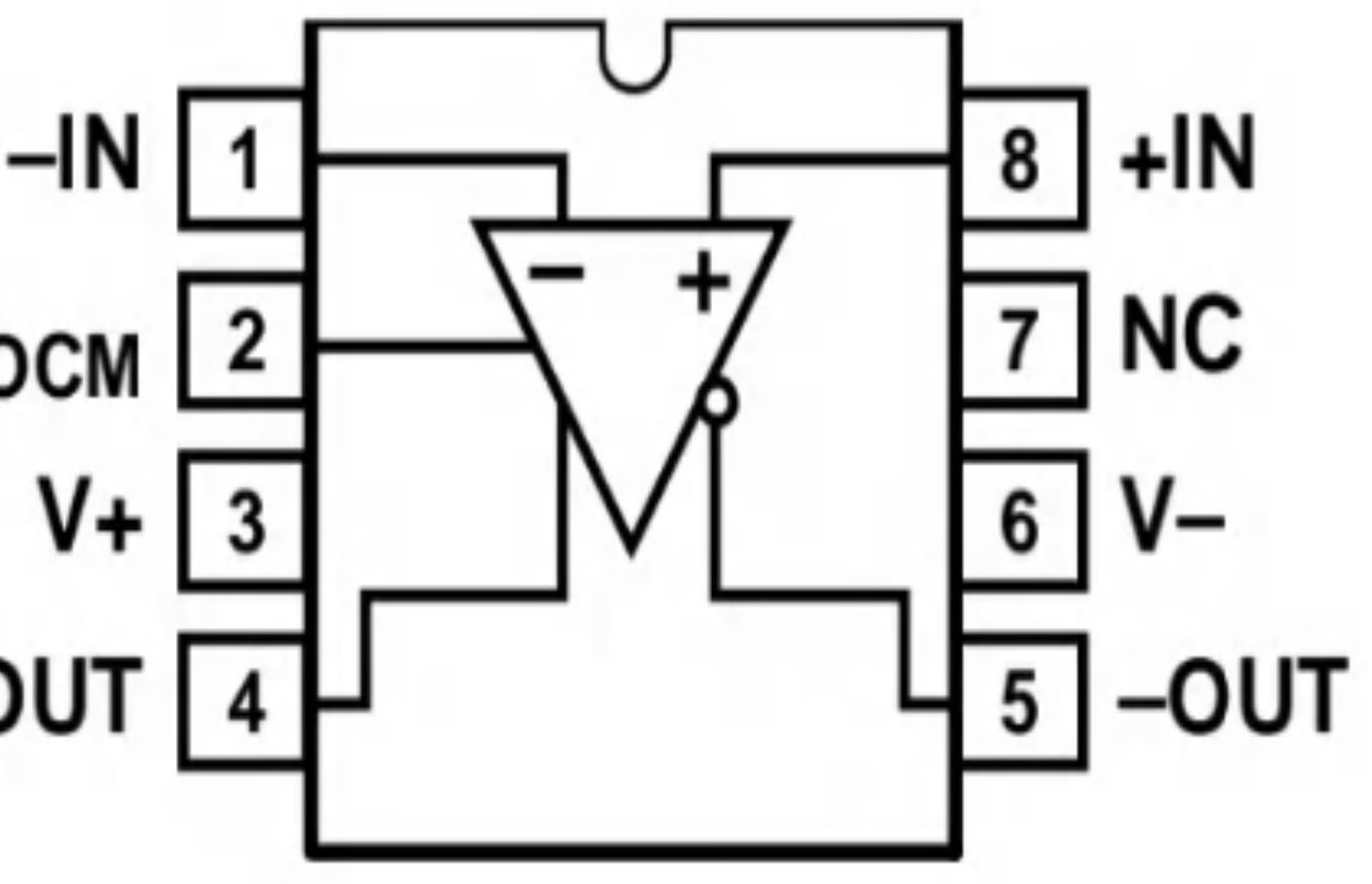

AD8138 equivalentYS8138
A single-ended-to-differential ADC driver with 300 MHz bandwidth, adjustable common-mode output and an on-chip 2.5 V reference.
- −3 dB bandwidth
- 300 MHz
- Slew rate
- 480 V/µs
- Supply
- ±5 V
- Reference
- On-chip 2.5 V

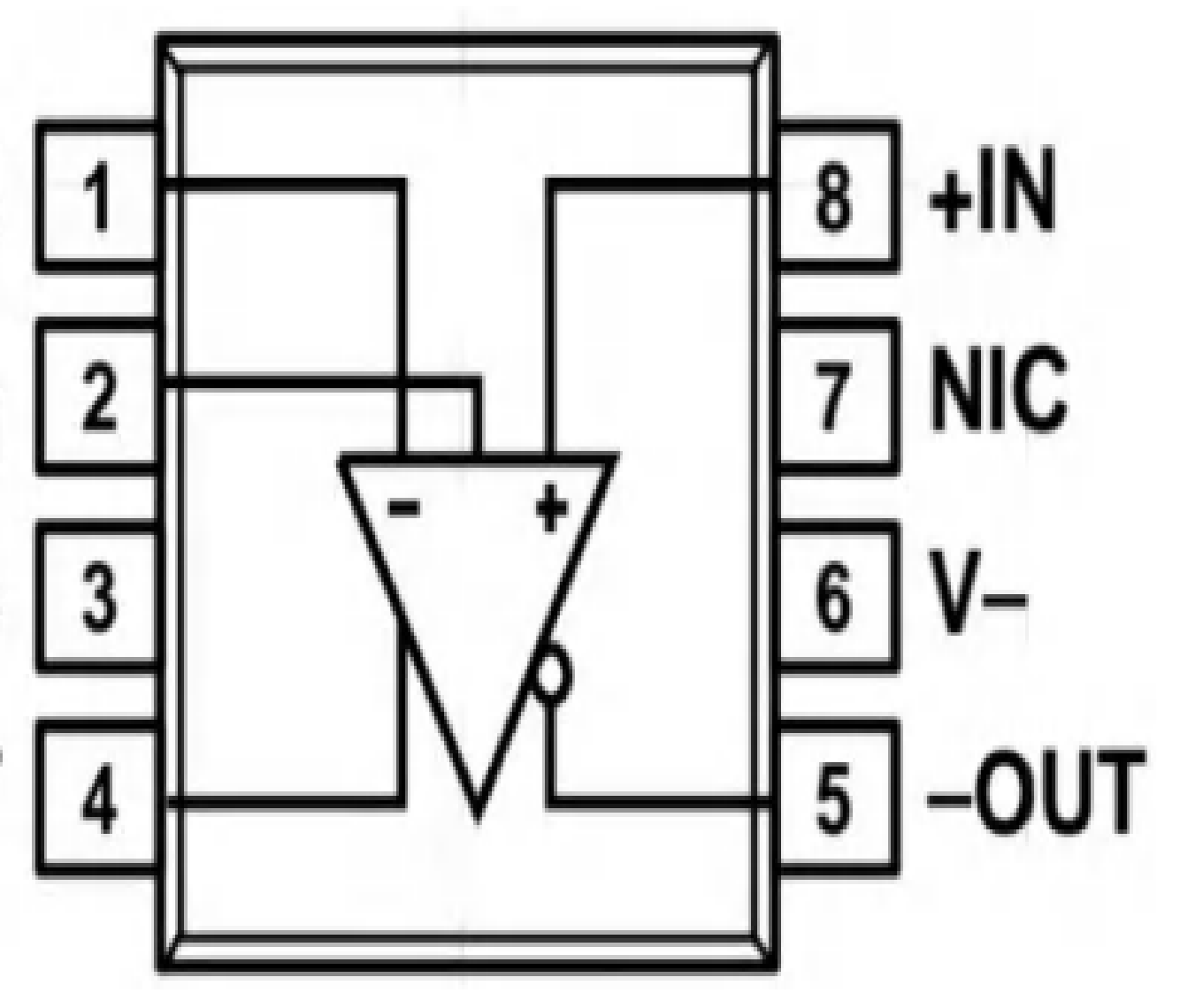

AD8139 equivalentYS8139
A low-noise differential ADC driver with 220 MHz bandwidth, 2.25 nV/√Hz input noise and 45 ns settling — for high-resolution converters.
- −3 dB bandwidth
- 220 MHz
- Input noise
- 2.25 nV/√Hz
- Settling time
- 45 ns
- Slew rate
- 660 V/µs
Connectors
Board-to-board, wire-to-board and surface-mount connectors from 0.50 mm to 3.00 mm pitch.

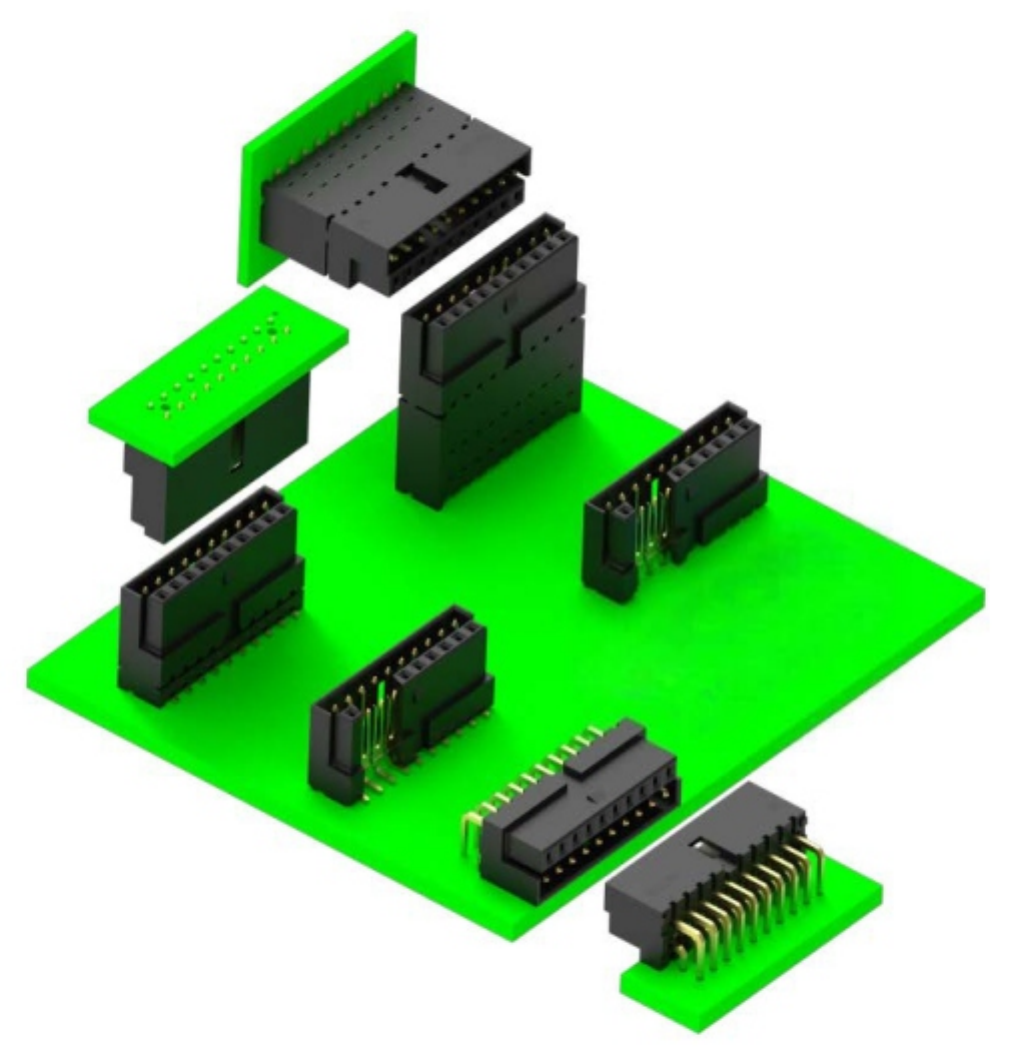

2.54 mmYS3701
A 2.54 mm pitch male-female integrated board-to-board connector offering various heights and both vertical and horizontal configurations — efficient, reliable signal transmission with fewer components and lower development cost.
- Pitch
- 2.54 mm
- Current rating
- 3.2 A
- Voltage rating
- 475 V AC
- Temperature
- −55…+125 °C

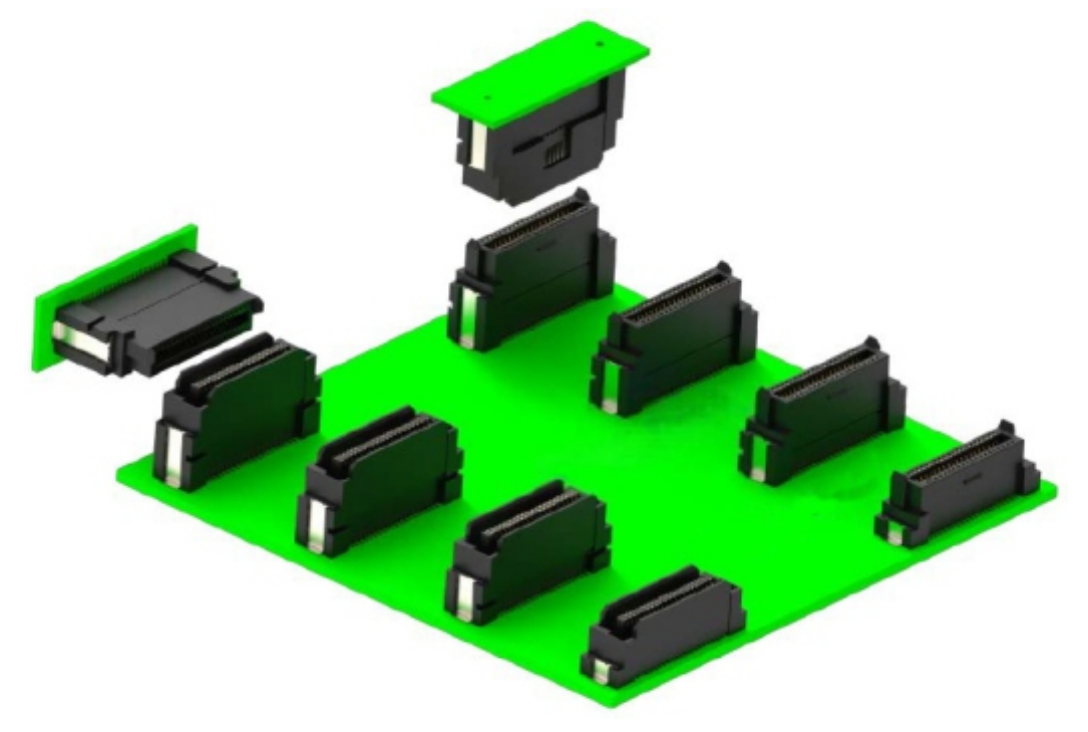

0.80 mmYS3614
A 0.80 mm pitch stackable SMT board-to-board connector available with 20 to 160 pins, with anti-mismating structure and a simple, secure lock.
- Pitch
- 0.80 mm
- Positions
- 20–160 pins
- Current rating
- 0.5 A
- Voltage rating
- 50 V

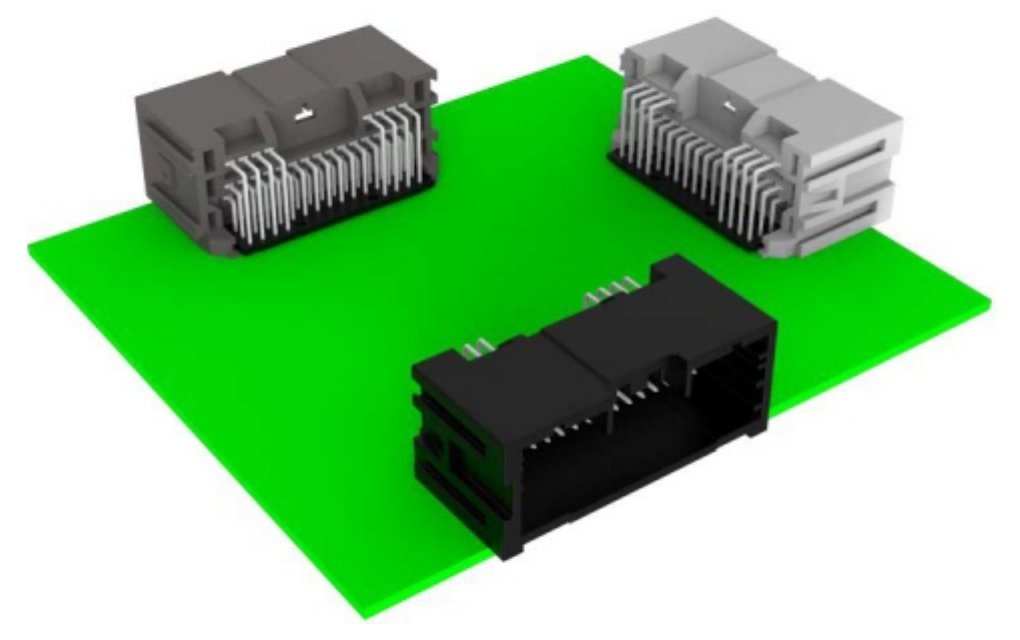

2.00 mmYS72040
A three-row 2.00 mm pitch non-sealed wire-to-board connector with locking mechanism and BL/CPA anti-mismating features, for automotive applications.
- Pitch
- 2.00 mm
- Rows
- Three-row
- Current rating
- 4.0 A
- Voltage rating
- 14 V

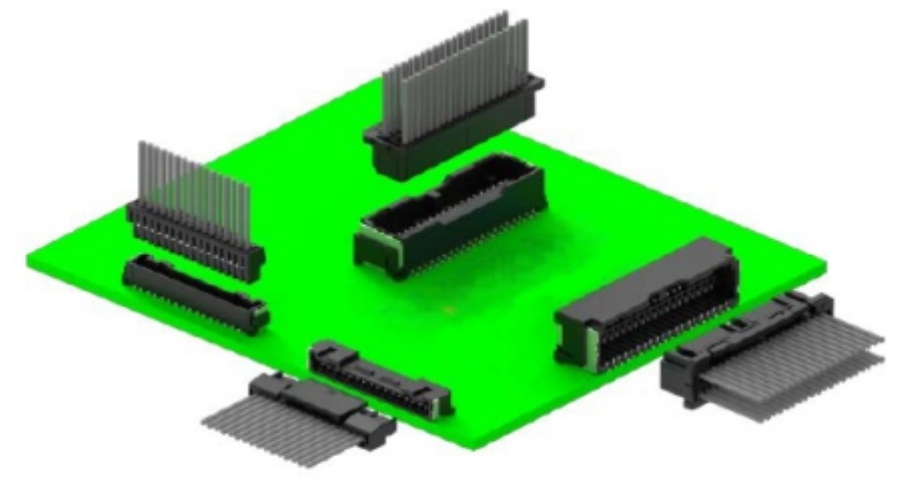

1.25 mmYS1258
A 1.25 mm pitch high-density wire-to-board connector with double-contact design, giving stable contact under vibration and shock in a very small envelope.
- Pitch
- 1.25 mm
- Current rating
- 2.4 A / 3.6 A
- Voltage rating
- 50 V
- Temperature
- −40…+125 °C

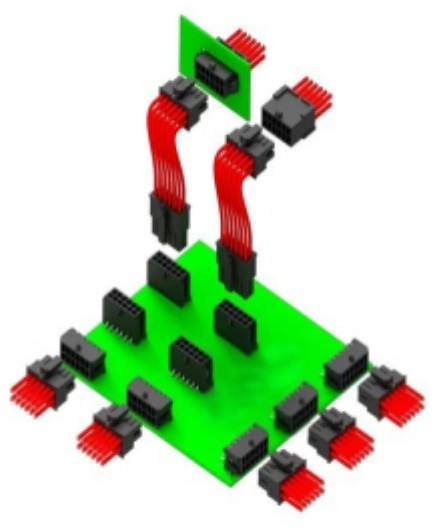

3.00 mmYS3001
A high-performance, compact 3.00 mm pitch wire-to-board connector that carries power without compromising space or reliability, with reflow-capable LCP construction.
- Pitch
- 3.00 mm
- Current rating
- 5.0 A
- Voltage rating
- 5 kV AC
- Temperature
- −40…+105 °C

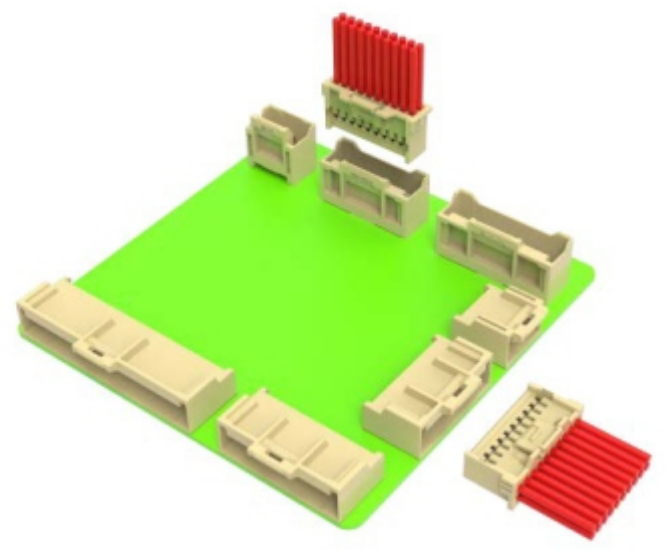

2.00 mmYS2011
A 2.00 mm pitch wire-to-board connector combining high density and high integration, with horizontal and vertical jack mounting to suit different insertion angles.
- Pitch
- 2.00 mm
- Current rating
- 3.0 A
- Voltage rating
- 250 V
- Temperature
- −40…+105 °C

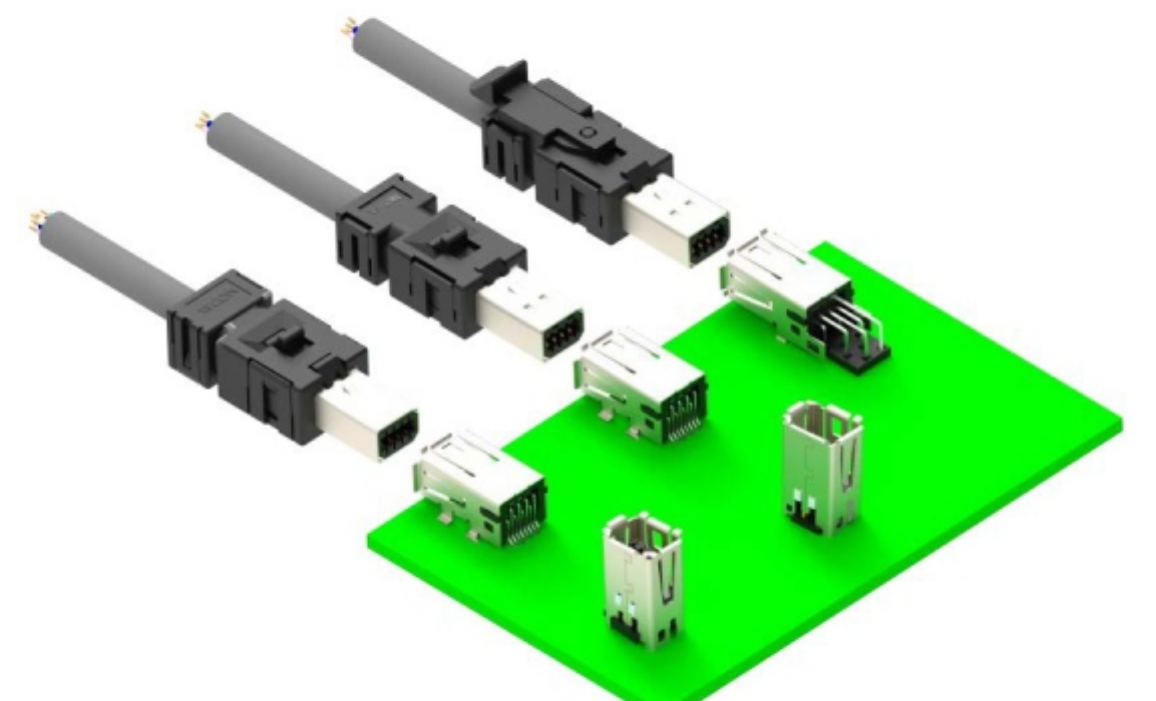

10 GbpsYS6361 & YS6362
Micro I/O rectangular connectors for data between devices in industrial applications — a quarter the size of a traditional RJ45 plug, with a locking latch and data rates from 10 Mbps to 10 Gbps.
- Pitch
- 1.27 mm
- Data rate
- 10 Mbps – 10 Gbps
- Current rating
- 0.5 A
- Shielding
- 360-degree

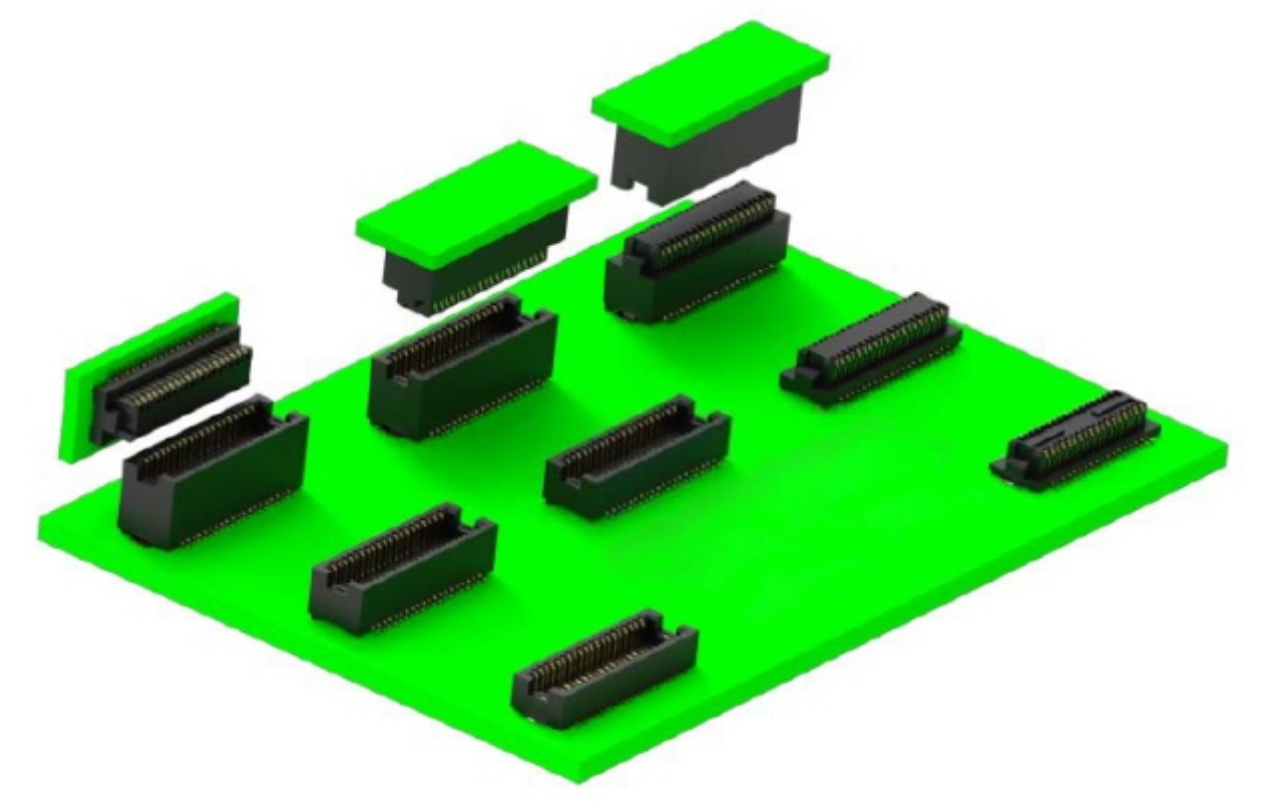

0.50 mmYS3622
An ultra-compact 0.50 mm pitch SMT board-to-board connector with versatile stacking heights, supporting both automated placement and FPC mounting.
- Pitch
- 0.50 mm
- Stack height
- 3.00–4.99 mm
- Current rating
- 0.5 A
- Voltage rating
- 50 V

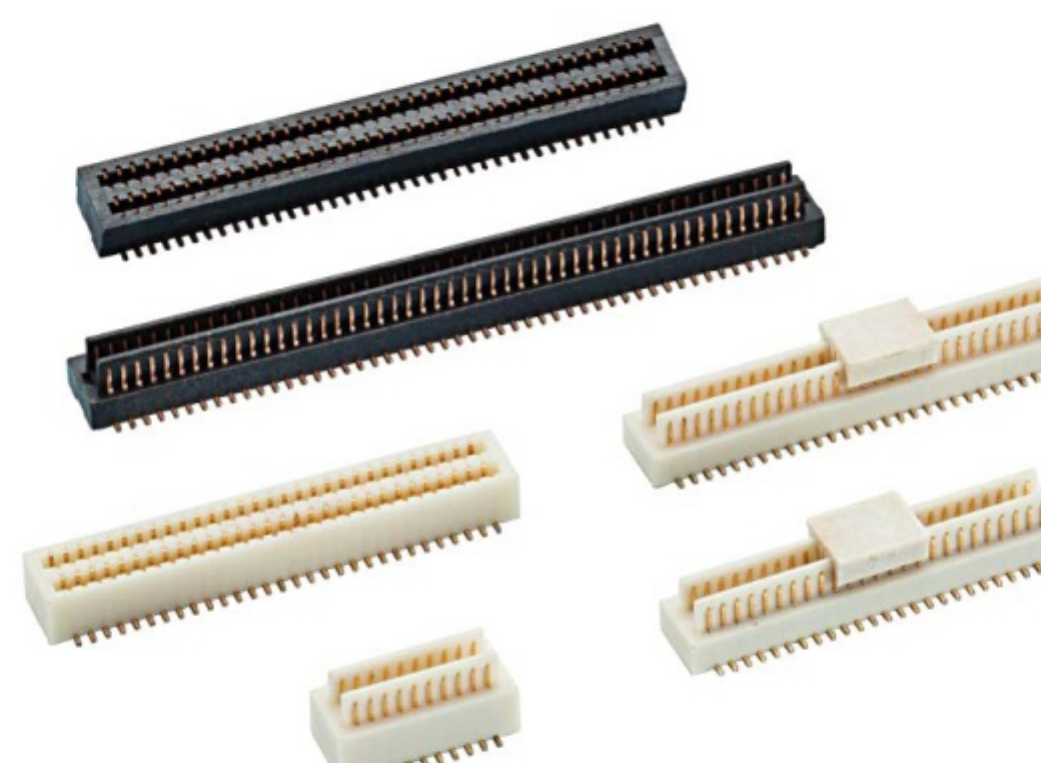

0.80 mmYS3610
A vertically-mounted dual-channel 0.80 mm pitch SMT board-to-board connector with blind-fit pairing and a selectable 4–8 mm stacking height for confined spaces.
- Pitch
- 0.80 mm
- Stack height
- 4–8 mm selectable
- Current rating
- 0.5 A
- Voltage rating
- 50 V
